ALL-ELECTRIC
BOLLINGER B4 & B5
COMMERCIAL TRUCKS

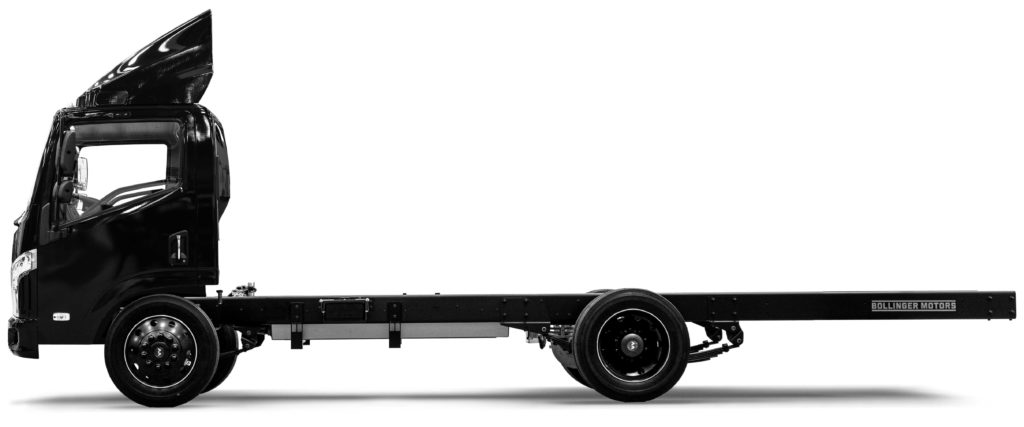

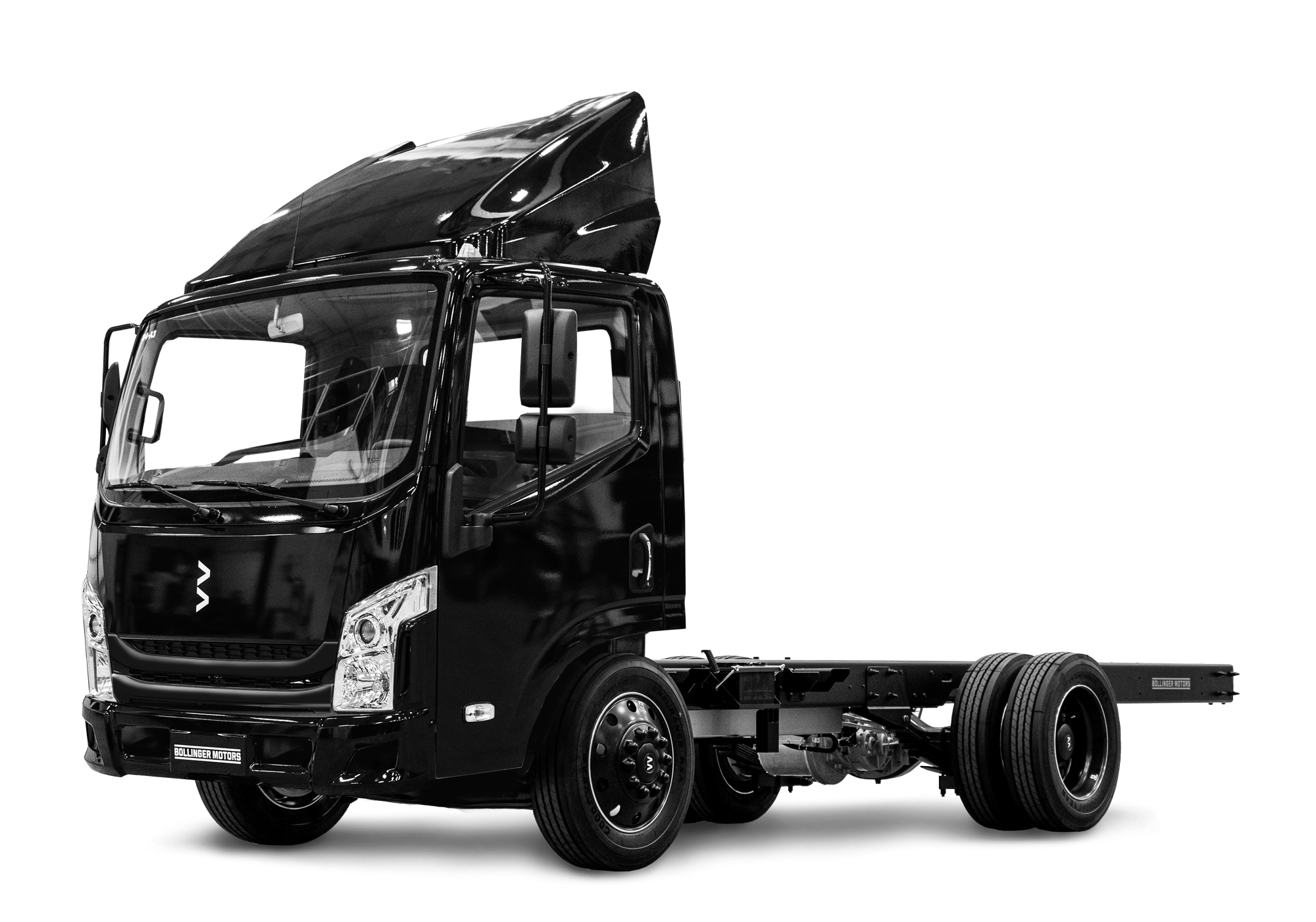

BOLLINGER B4 CHASSIS CAB

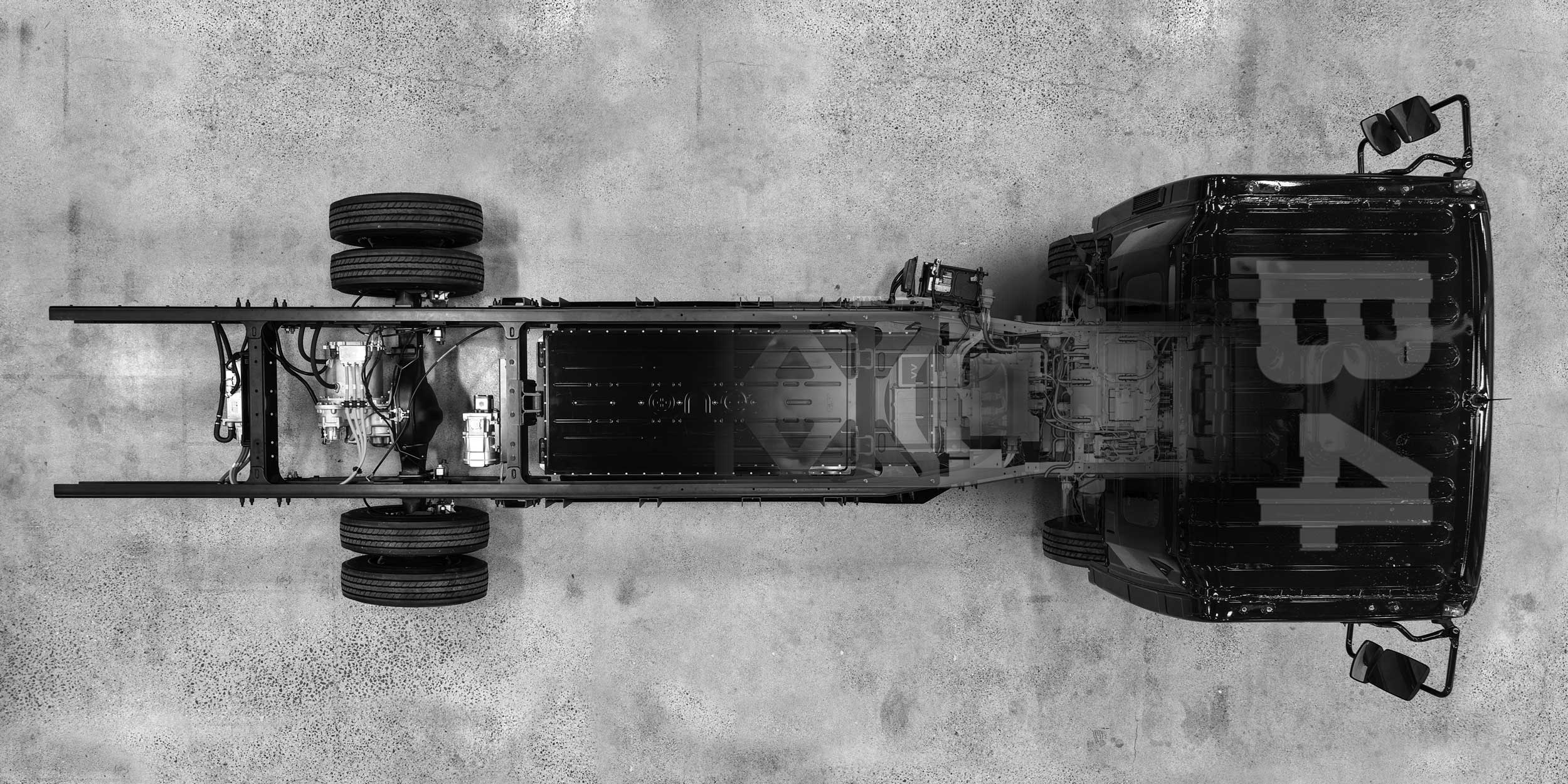

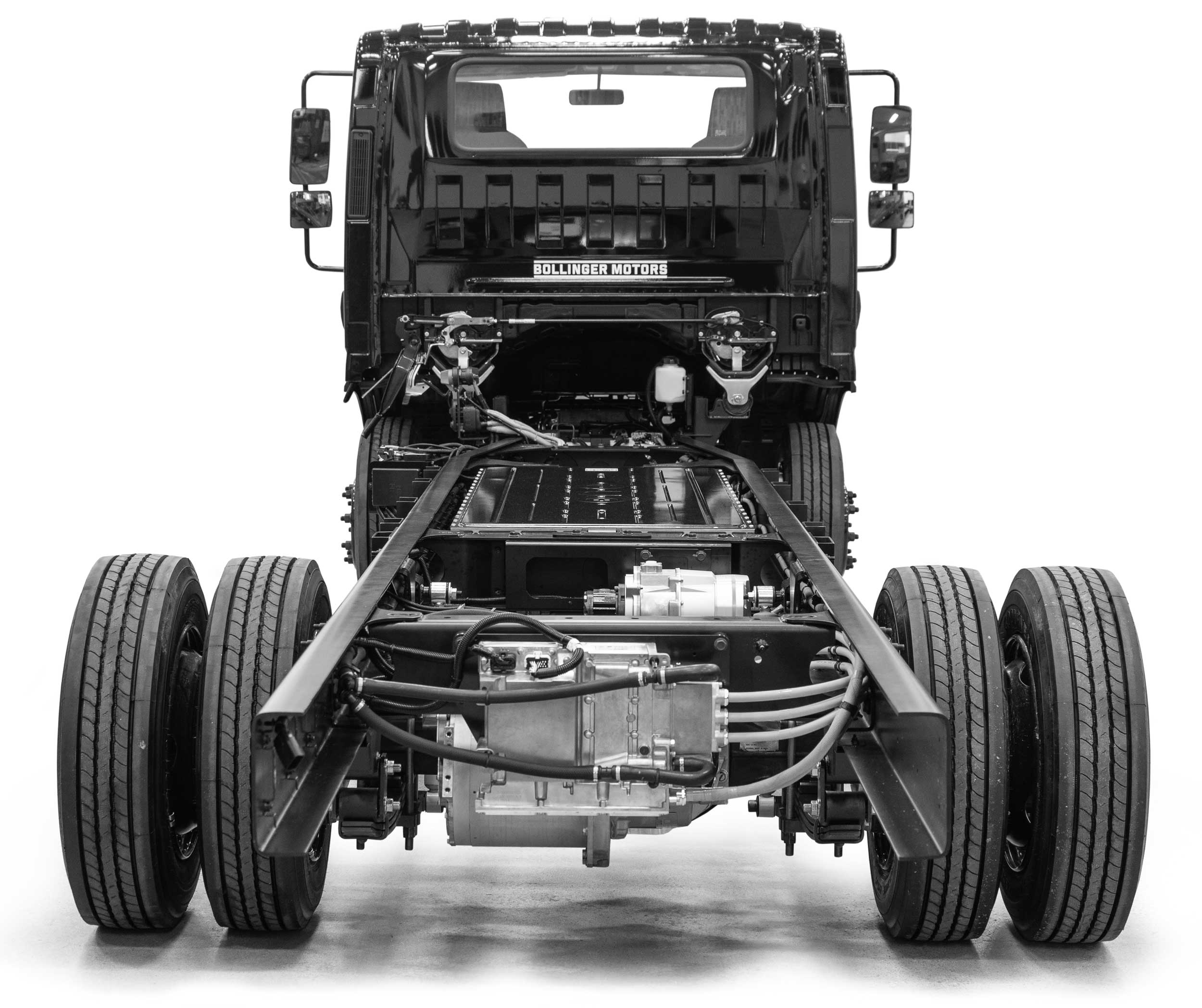

The Bollinger B4 Chassis Cab is an all-new, all-electric class 4 truck designed designed to be custom-configured by fleets to fit their exact duty cycle needs, making the transition to electric as seamless as possible with minimal down time. Every aspect of these trucks has been streamlined to be as versatile as possible. Clean, unobstructed frame rails for easy mounting and upfit adaptation, with all drivetrain components safely packaged inside the rails. New cab forward design with better visibility, freeing up space behind the driver for more cargo.

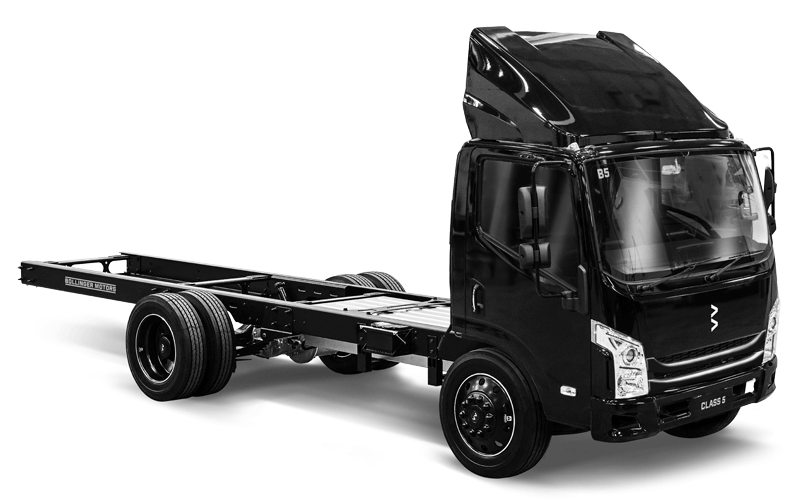

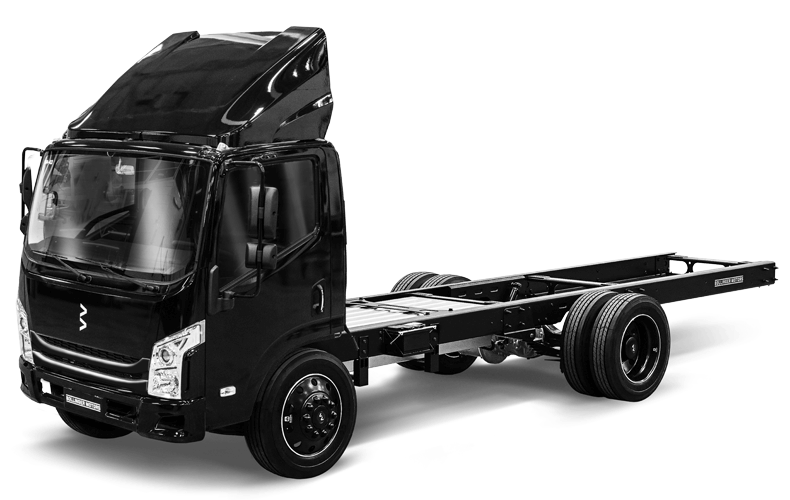

BOLLINGER B5 CHASSIS CAB

The all-new Bollinger B5 Chassis Cab is the Class 5 big brother of the B4. More robust in many aspects over the B4, the B5 offers greater weight and payload options. Same clean, unobstructed frame rails for easy mounting and upfit adaptation, with all drivetrain components safely packaged inside the rails. These all-electric class 5 commercial trucks were designed to up the game in meeting your higher standards and specific fleet requirements. See Class 5 specs for the Bollinger B5 below.

SPECIFICATIONS

BOLLINGER B4

  • VEHICLE CLASS 4
  • GVWR 15,500 LBS
  • REAR AXLE DUAL RWD 10,500 LBS
  • SOLID FRONT AXLE 6,500 LBS
  • PAYLOAD 7,325 LBS
  • WHEELBASE 158"
  • TURN CIRCLE 44'
  • CAB TO AXLE 138"
  • CAB TO BOX 8"
  • FRAME HEIGHT 32"
  • FRAME WIDTH 40"
  • BODY LENGTH 16'-18'
  • HORSEPOWER 323
  • TORQUE 702 FT LBS
  • RANGE 110-200 MILES
  • AC LVL 2 CHARGE TIME 0-100% 9 HOURS
  • DC FAST CHARGE TIME 0-100% 1.5 HOURS

BOLLINGER B5

  • VEHICLE CLASS 5
  • GVWR 19,500 LBS
  • REAR AXLE DUAL RWD 13,500 LBS
  • SOLID FRONT AXLE 7,500 LBS
  • PAYLOAD 11,000 LBS
  • WHEELBASE 158", 178"
  • TURN CIRCLE 44-48''
  • CAB TO AXLE 138", 158"
  • CAB TO BOX 8"
  • FRAME HEIGHT 32"
  • FRAME WIDTH 40"
  • BODY LENGTH 16'-20'
  • HORSEPOWER 323
  • TORQUE 702 FT LBS
  • RANGE 110-180 MILES
  • AC LVL 2 CHARGE TIME 0-100% 9 HOURS
  • DC FAST CHARGE TIME 0-100% 1.5 HOURS

BOLLINGER B6

OPTIONS

AVAILABLE ON BOLLINGER B4 AND B5

MOBILEYE ADVANCED DRIVER ASSISTANCE SYSTEM:

FORWARD COLLISION WARNING

PEDESTRIAN & CYCLIST COLLISION WARNING

LANE DEPARTURE WARNING

HEADWAY MONITORING & WARNING

SPEED LIMIT INDICATOR

TERZO E-PTO

10 KW (13.4 HP)

96" MIRRORS

CAB AIR SHIELD

CAB COLORS:

WHITE (STANDARD)

*CUSTOM COLORS REQUIRE PAINT CODES, ADDITIONAL LEAD TIMES, AND MINIMUM QUANTITIES

WHEEL COLORS:

WHITE

BLACK

GREY

All specifications are preliminary and subject to change.

An electric medium duty truck. Cab forward electric truck. Bollinger Motors. Bollinger B4.

> READY FOR YOUR UNIQUE UPFIT NEEDS

Our trucks come upfit-ready to adapt seamlessly with your fleet's specific duty cycle. Whether it's a box truck, a bucket truck or a walk-in van, our team will help you dial in the electric trucks you need. We've partnered with some of the best and most experienced commercial upfitters in the country. For specific questions and information regarding your electric fleet trucks, the whole process of going electric, or where to even begin, contact us directly.

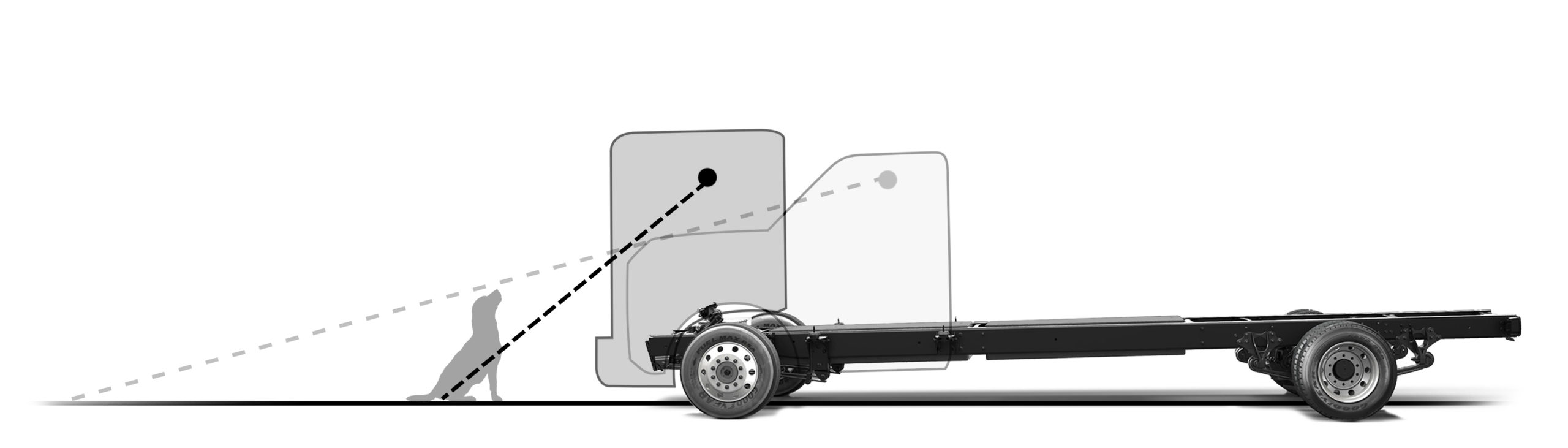

> PRECIOUS CARGO IN AND OUT

The safety of your employees, your customers, and the general public rank among the highest in how we've designed our electric trucks and support your fleet. A cab-forward design increases visibility for drivers near and far, keeping them and all beings around them out of harm's way.

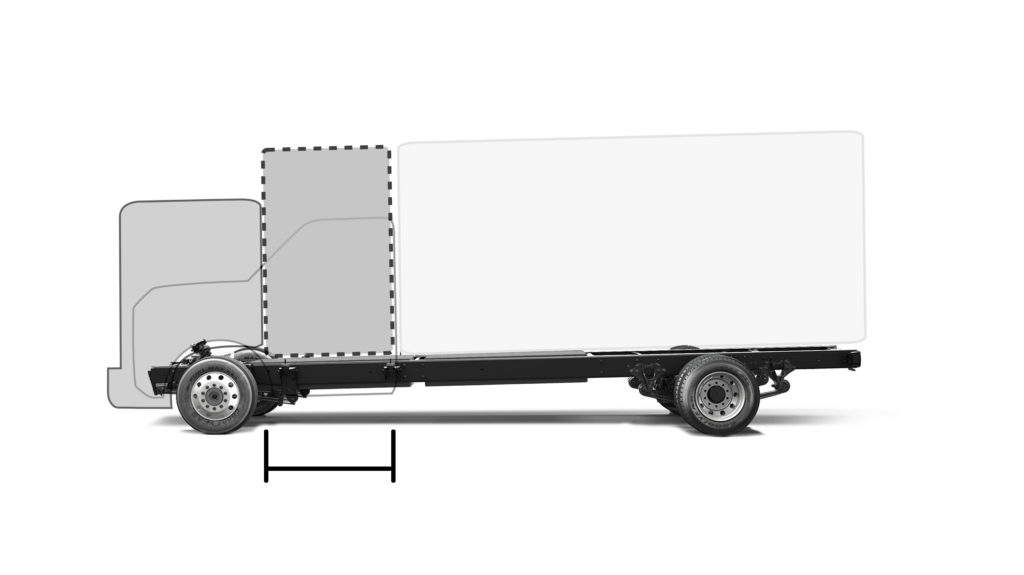

> MORE ROOM FOR WORK

The cab-forward position also accommodates valuable additional cargo space in front of the rear wheels and behind the driver that conventional cabs do not.

> MORE CARGO, LESS WHEELBASE

Conventional cab trucks require longer wheelbases and still fall short of the same cargo capacity. This means taking wider turns with smaller loads on the back than a cab-forward truck.

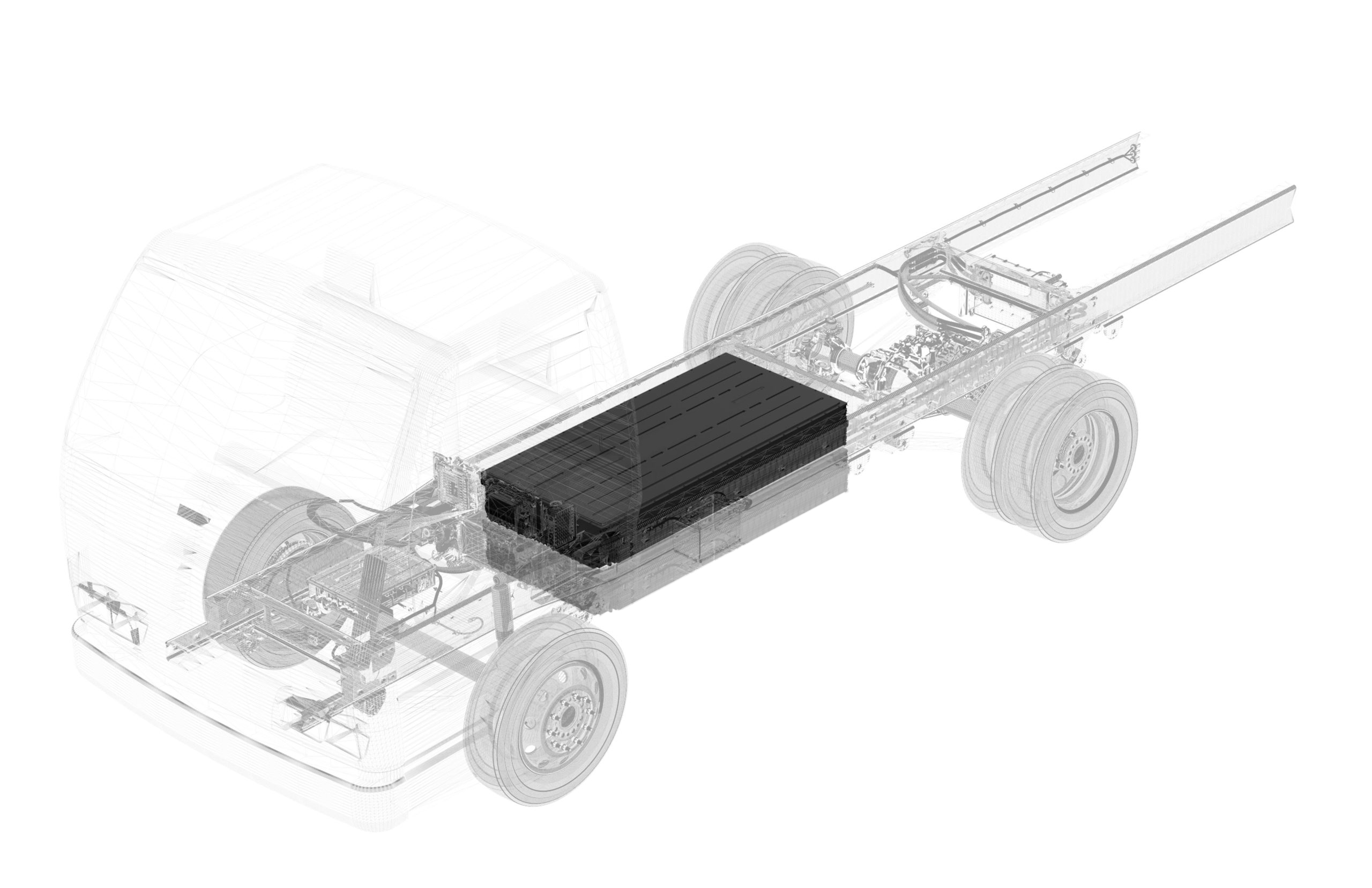

> DUAL BATTERY POWER

Bollinger Motors, as an electric commercial truck manufacturer, is working with world class battery manufacturer, ONE, to provide an unwavering standard in reliability. High-voltage components will operate on an 800-volt platform, with a 2-battery pack system, providing a range of 160 - 185 miles to a charge, load dependent. The ONE Aries LFP chemistry contains no nickel or cobalt, offering superior durability and daily charging up to 100% without compromise.

> DESIGNED, ENGINEERED, & ASSEMBLED IN MICHIGAN

We are proud to be based in the Detroit area, right in the heart of the automotive industry. Our team is made up of world class engineers and tier 1 suppliers committed to delivering the best commercial platforms on the market. By keeping design, engineering and assembly here in the U.S.A., our overall cost of operation is significantly lower, while ensuring quality. We pass these benefits along to our customers. Both economically and environmentally, aiming to have as small a carbon footprint as possible, our goal is to source as many components and materials locally as possible, and to assemble our electric commercial trucks right here in the Midwest.
